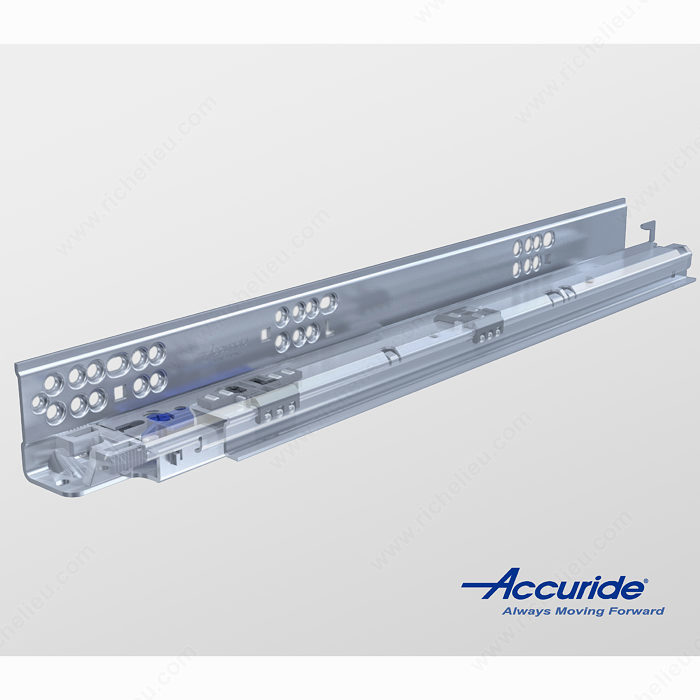

Accuride’s high-performance undermount slide was created specifically for architectural and contact furniture professionals who demand a robust and reliable soft-close undermount. The Eclipse 3135EC has been re-designed to improve sensorial movement, reduce pull force and noise, minimize deflection, and increase soft-close reliability. The new product features a compact design with an internal Easy-Close mechanism, while offering a unique 3-way drawer front adjustment feature for ease instalaltion.

ADVANTAGES AND BENEFITS

– ADA compliant – with 4.8 lbs. of pull force (up to 100 lbs)
– Fluid dampener resists slam without adding bounce-back
– Smooth and consistent soft-close action and movement
– Multiple drawer-front adjustment features horizontal, vertical, and front-to-back adjustment for ease of installation
– New interior easy-close mechanism reduces envelope of product (perfect for narrow drawer sizes)
– Lower spacer clip with additional plastic ball bearings provides added lateral support, reduced migration, and side-to-side movement

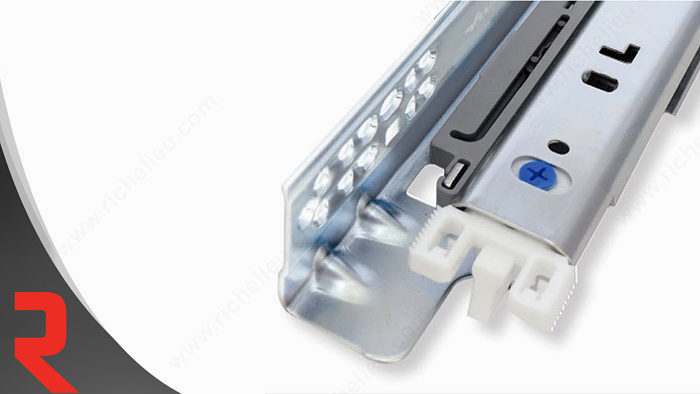

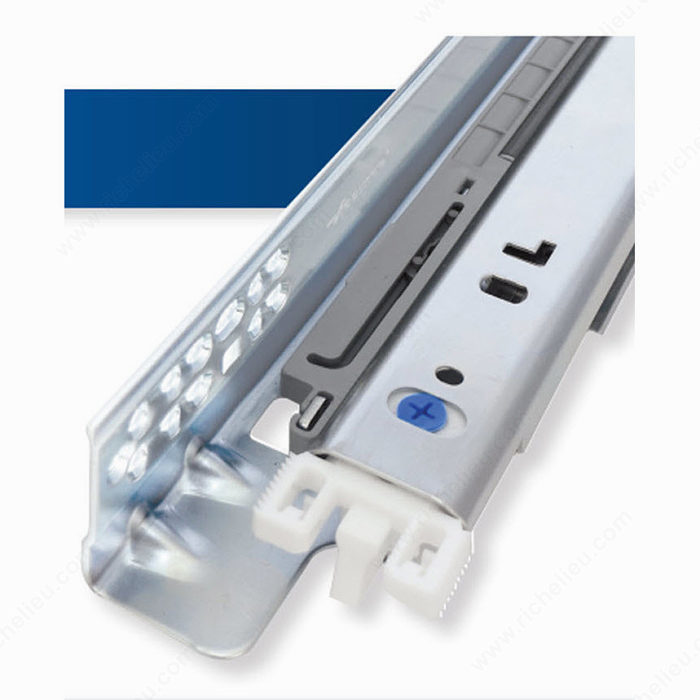

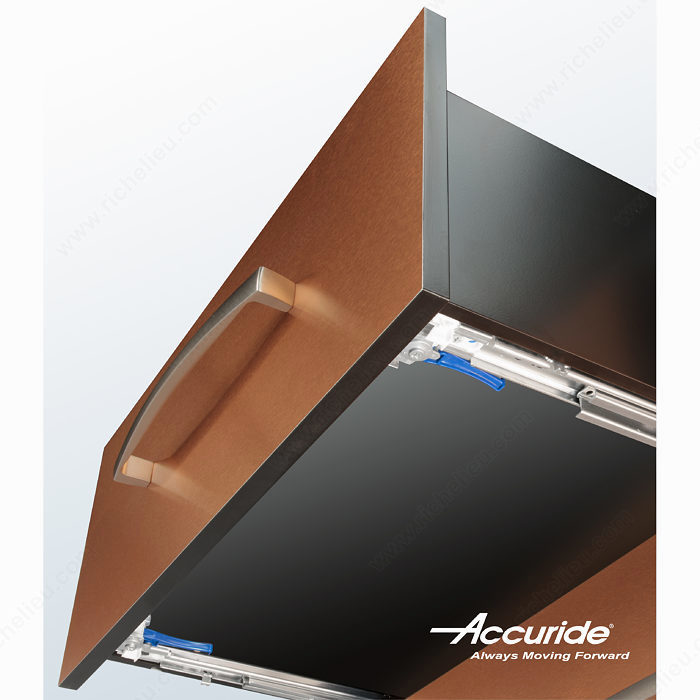

– New disconnect lever design provides easy front-to-back and in-and-out adjustment of up to 3/16″ and secures position
– Supports drawers up to 30″ wide
– Improved full extension movement
– ANSI/BHMA certified

APPLICATION

– Retail fixtures
– Hospitality
– Medical facilities
– Institutional casework
– High-end residential

IMPORTANT INFORMATION

Distributor (D) Pack
All lengths are packaged 1 pair per box. Box
includes one pair of slides with 6 ea. #8 x 5/8″
Phillips flat head screws (for slides), 2 ea.
standard horizontal disconnect levers, and 4 ea.
#6 x 5/8″ phillips pan head screws (for levers).

Bulk (P) Pack
Lengths 12″-24″ packaged 6 pair per box
Lengths 26″-28″ packaged 4 pair per box
A separate polybag containing 36 ea. #8 x 5/8″
Phillips flat head screws are included. Disconnect
levers and screws for lever installation are ordered
separately.
