To be used with sprung Blum hinges

With TIP-ON mechanical opening assistance, handleless doors open with a light touch. A light touch is all it takes to close them again.

Thanks to the new ejector mechanism with locking positions, the integrated front reveal can be adjusted comfortably and without tools. TIP-ON can be perfectly matched to the cabinet’s interior. TIP-ON’s wide range of colors opens up a host of design possibilities, and blends seamlessly into the cabinet.

ADVANTAGES AND BENEFITS

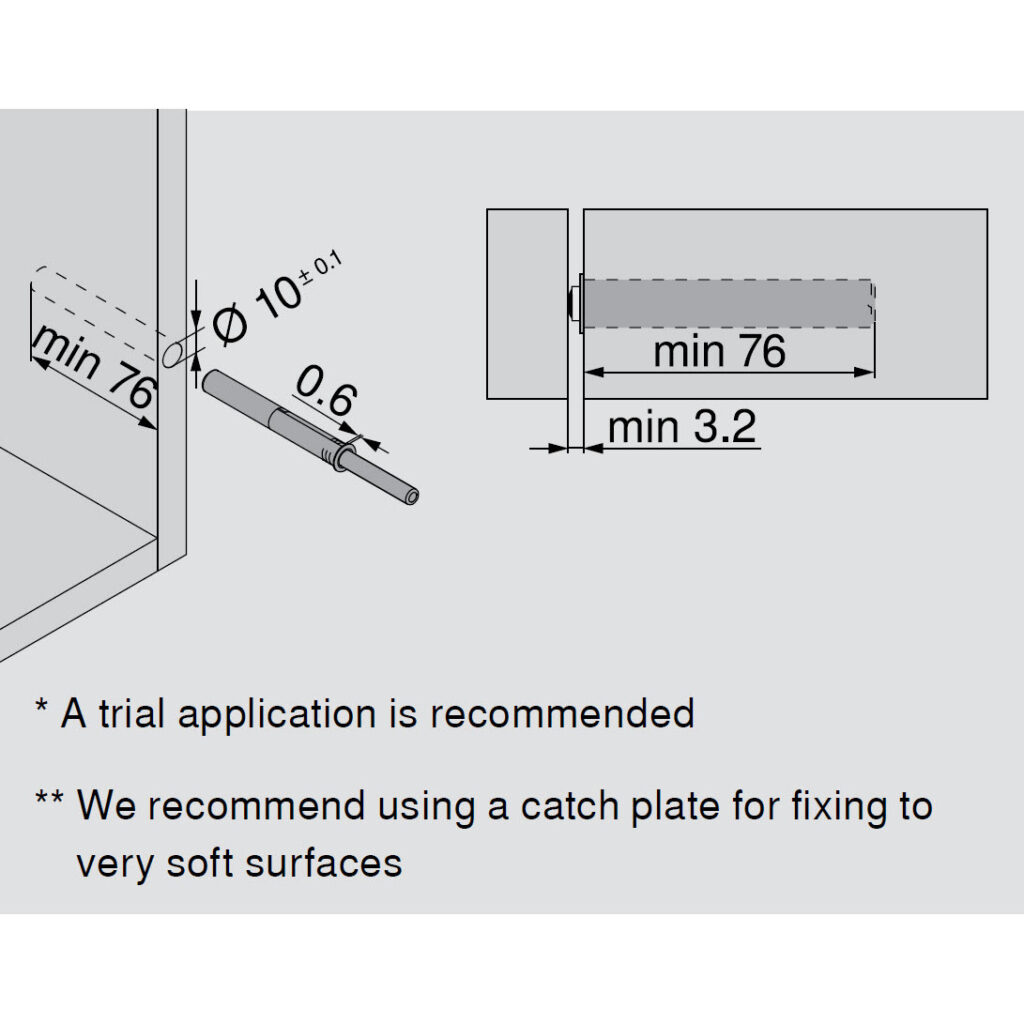

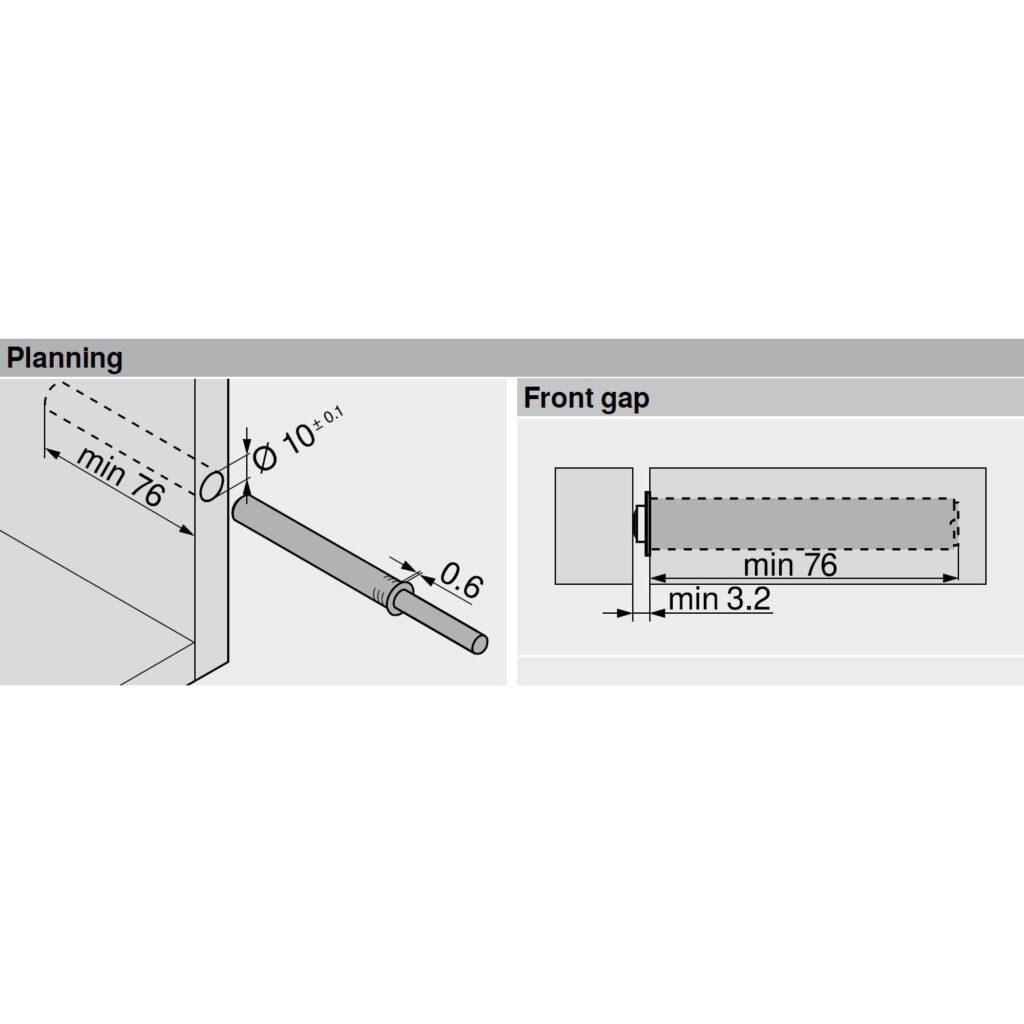

• To be drilled (Ø 3/8 in x 3 in (Ø 10 x 76 mm)) or in combination with brackets
• Ejection stroke approx. 1 1/2 in (38 mm)
• Adjustment +4/–1 mm

INCLUDED PRODUCT(S)

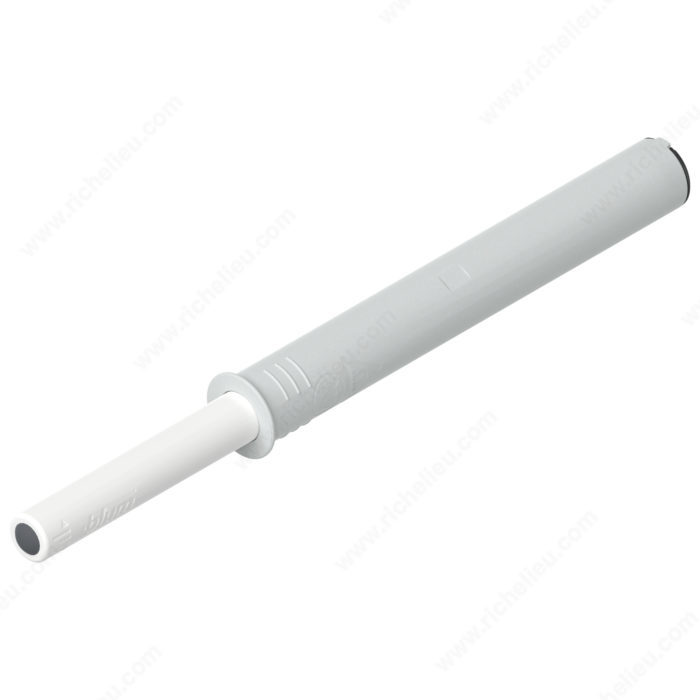

1 x TIP-ON 956A — long version with bumper
No catch plate needed (we recommend using a catch plate for very soft surfaces)
