To be used with unsprung Blum hinges

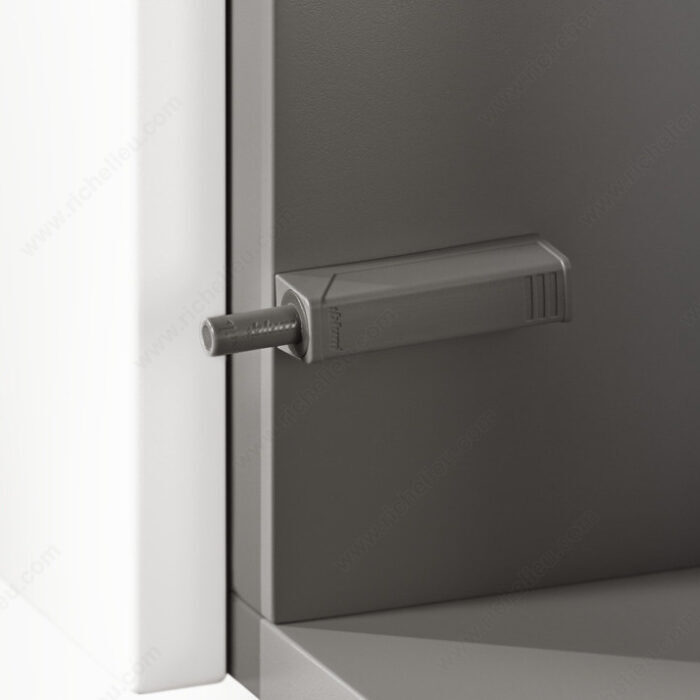

With TIP-ON mechanical opening assistance, handleless doors open with a light touch. A light touch is all it takes to close them again.

Thanks to the new ejector mechanism with locking positions, the integrated front reveal can be adjusted comfortably and without tools. TIP-ON can be perfectly matched to the cabinet’s interior. TIP-ON’s wide range of colors opens up a host of design possibilities, and blends seamlessly into the cabinet.

ADVANTAGES AND BENEFITS

• For overlay doors (up to approx. 51 3/16 in (1300 mm) high)

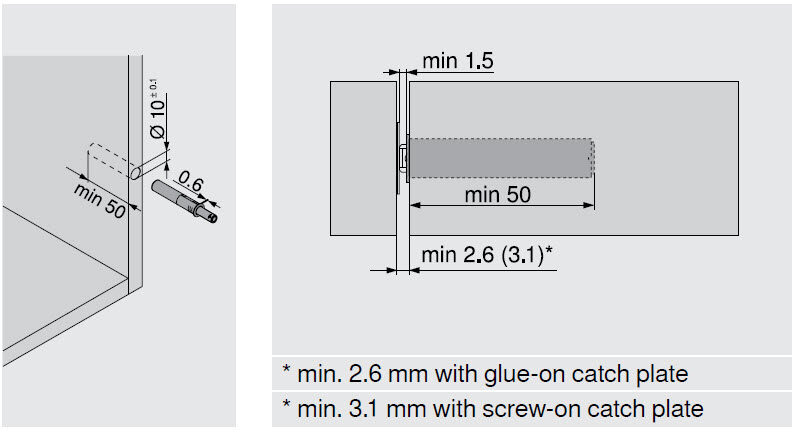

• To be drilled or in combination with brackets
• Ejection stroke approx. 11/16 in (17 mm)
• Adjustment +4 mm / -1 mm

INCLUDED PRODUCT(S)

1 x TIP-ON 956. – short version with magnet

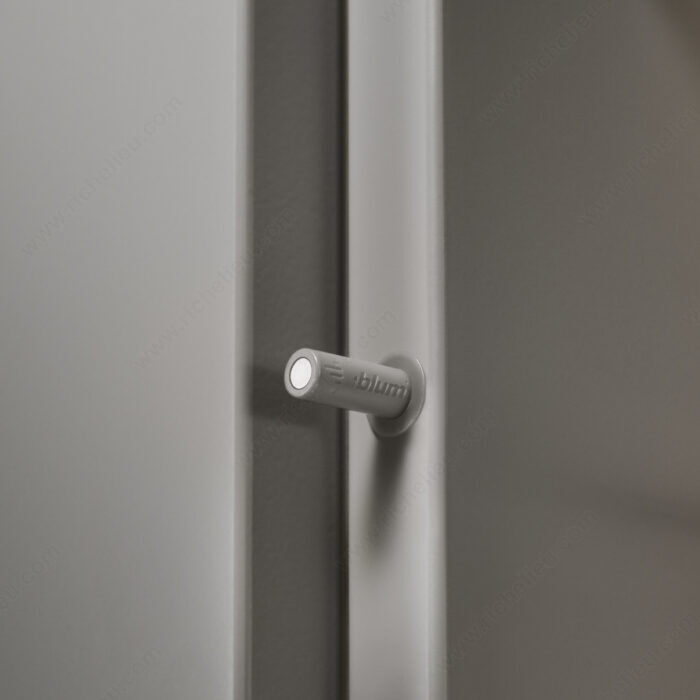

1 x Glue-on catch plate
Not suitable for powder-coated, waxed or oiled surfaces
1 x Screw-on catch plate
