75M41090 corresponds to Blum’s 75T4100

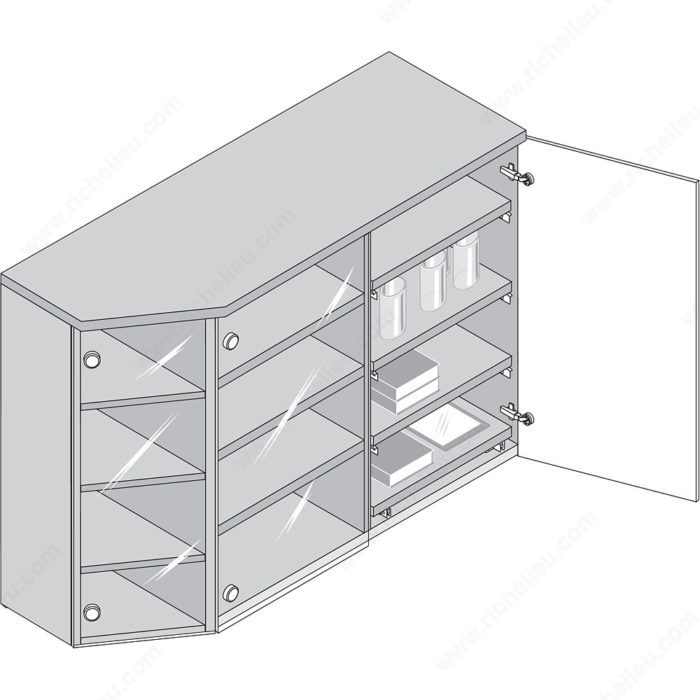

– Glass door hinge

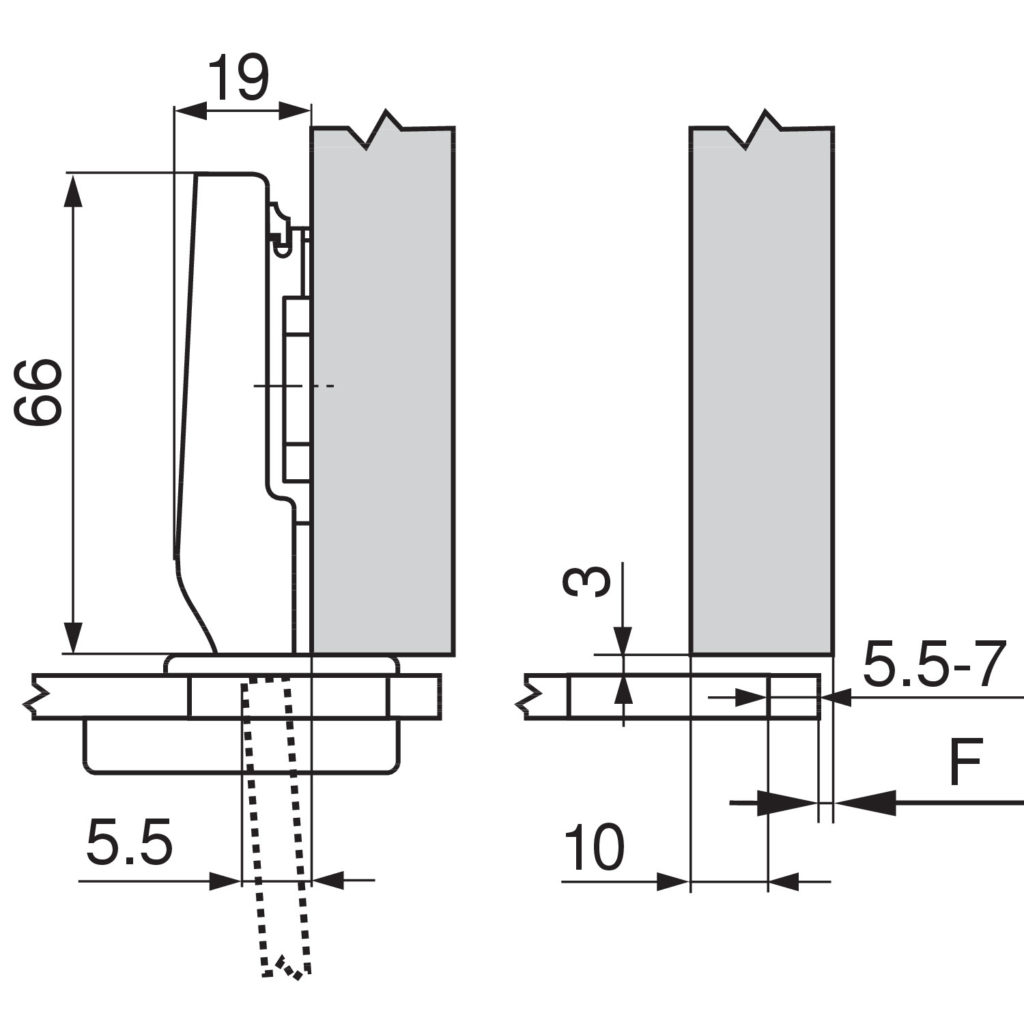

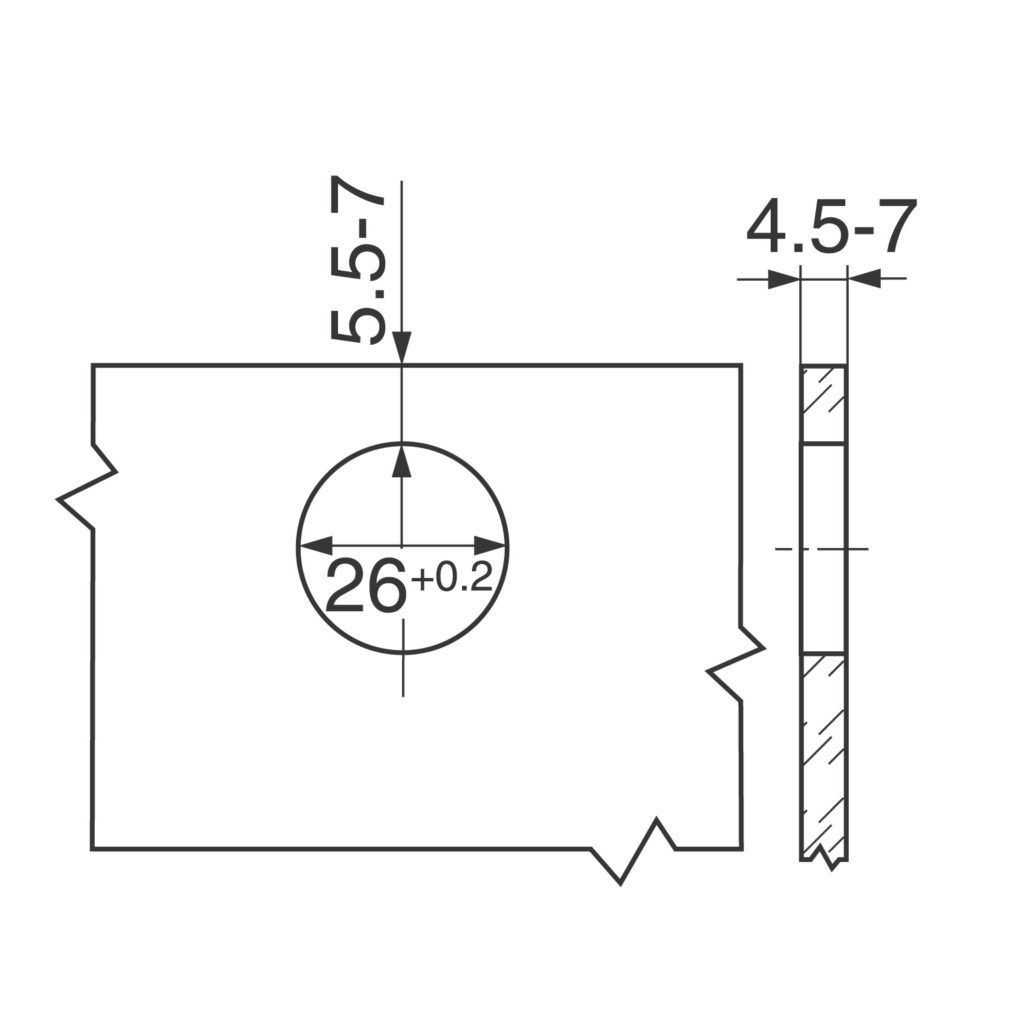

– For front thickness FD 4.5-7 mm
– CLIP top with closing mechanism (spring)
– 94° opening angle
– 3-dimensional front adjustment
– Convenient spiral-tech depth adjustment
– Tool-free door to cabinet assembly and removal
– Housing fixing screws included in hinge packaging

IMPORTANT INFORMATION

*** For a greater selection of mounting plates, please visit the Blum Mounting Plates section ***

INCLUDED PRODUCT(S)

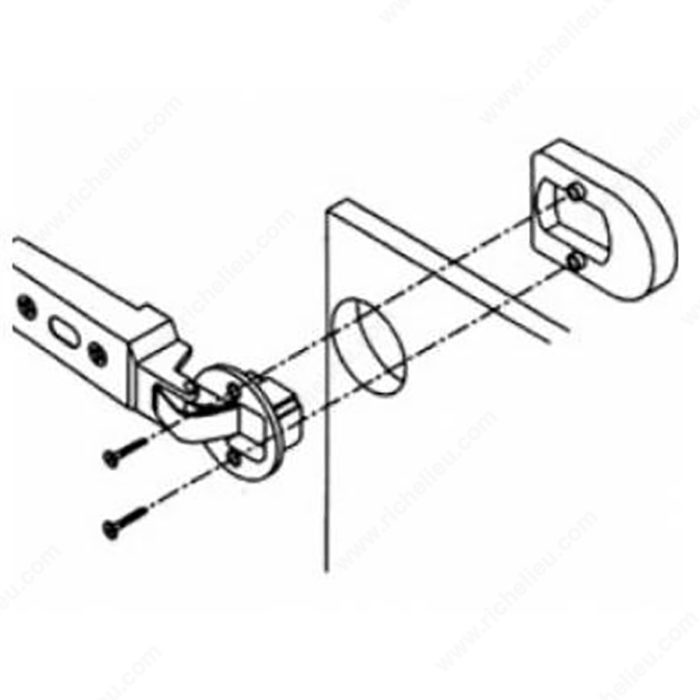

The mounting screws can easily be replaced by regular #4 x 12.7 mm (1/2″) wood screws, since these don’t touch the glass during installation.
