Solution for thin fronts

The revolutionary design for CLIP top BLUMOTION for thin doors was reimagined from the inside out. The soft-close technology has been integrated into the hinge, eliminating the need for a hinge cup. With a 110° opening angle and zero protrusion, this solution can work for a variety of applications.

110° opening angle
Integrated BLUMOTION with deactivation for small/light doors
Zero protrusion
Overload safety feature
Compatible with existing CLIP mounting plates

Replacement screw: FPBN612VPR

*Angle restriction clips available (92°) see suggested product*

ADVANTAGES AND BENEFITS

An easily assembled system

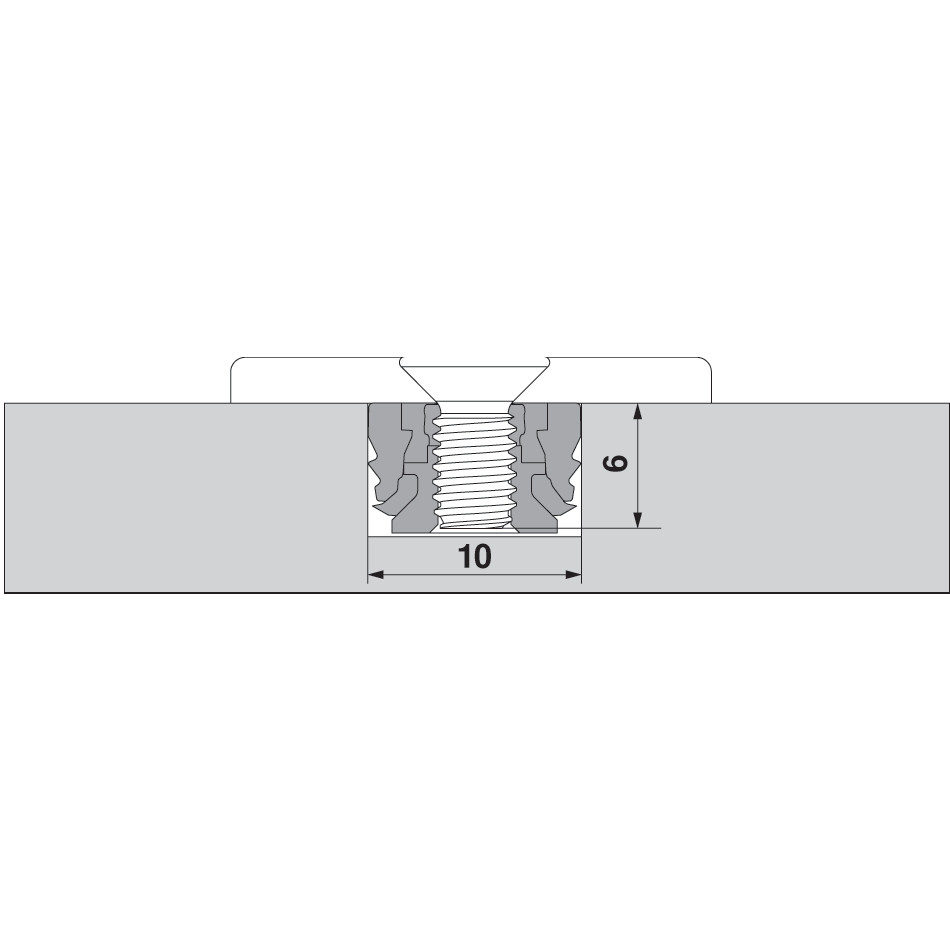

The new attachment system for thin fronts is based on EXPANDO T technology. A steel pull-in anchor ensures a secure fit for harder materials, while plastic jaws secure the fit for softer materials. Assembly is simple — drill, insert and secure the screws. With sufficient stability and strength, front materials of 8 mm to 14 mm may be used.

APPLICATION

Suitable for fronts from 8 mm to 14 mm, the thin door attachment is strong enough for heavier stones while still being suitable for softer materials. Bring your ideas to life using a wide range of materials:

– MDF
– Veneered MDF
– Laminated MDF
– Veneered particleboard
– Melamine
– HDF
– HPL
– Solid surface
– Mineral composite
– Concrete
– Quartz composite
– Natural stone
– Cement fiberboard
– Ceramic

DISCLAIMER

Richelieu Hardware and Blum accepts no liability for the use of the thin front attachment system in combination with materials not listed or hardware from other manufacturers. It is recommended that the assembly be carried out by an experienced cabinet manufacturer.
